MQTT Support

Gateway 2.0 and MQTT Support

Learn how to create the connection between MQTT and the most powerful gateway.

Phantom Gateway 2.0 MQTT support

The Gateway 2.0 used in the wireless sensor system Erbessd Instruments Phantom® supports the MQTT IoT protocol. All sensors data is available  trought  MQTT, including temperature, rpm, etc. As well as full time wave forms from vibration sensors (the FFT must be processed by the user from the TWF).

The gateway acts as a MQTT client that will connect to a MQTT broker of your choice.

Enabling MQTT support

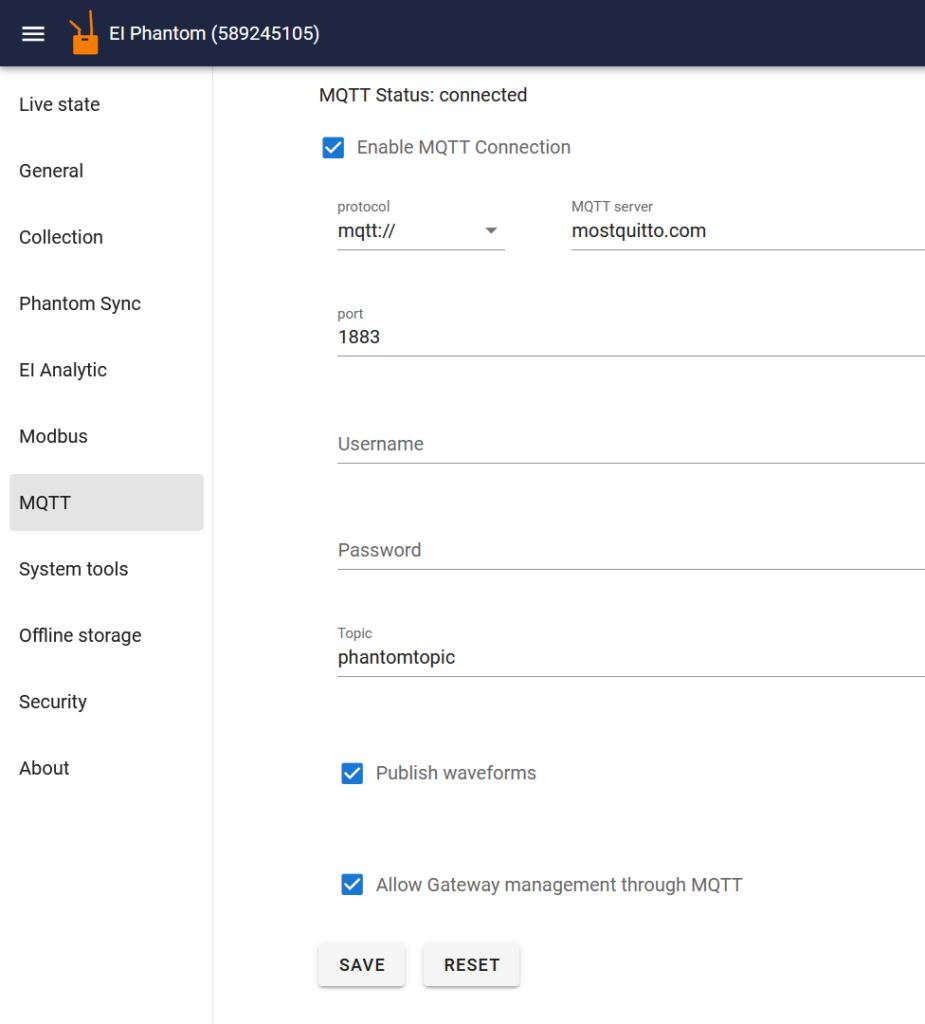

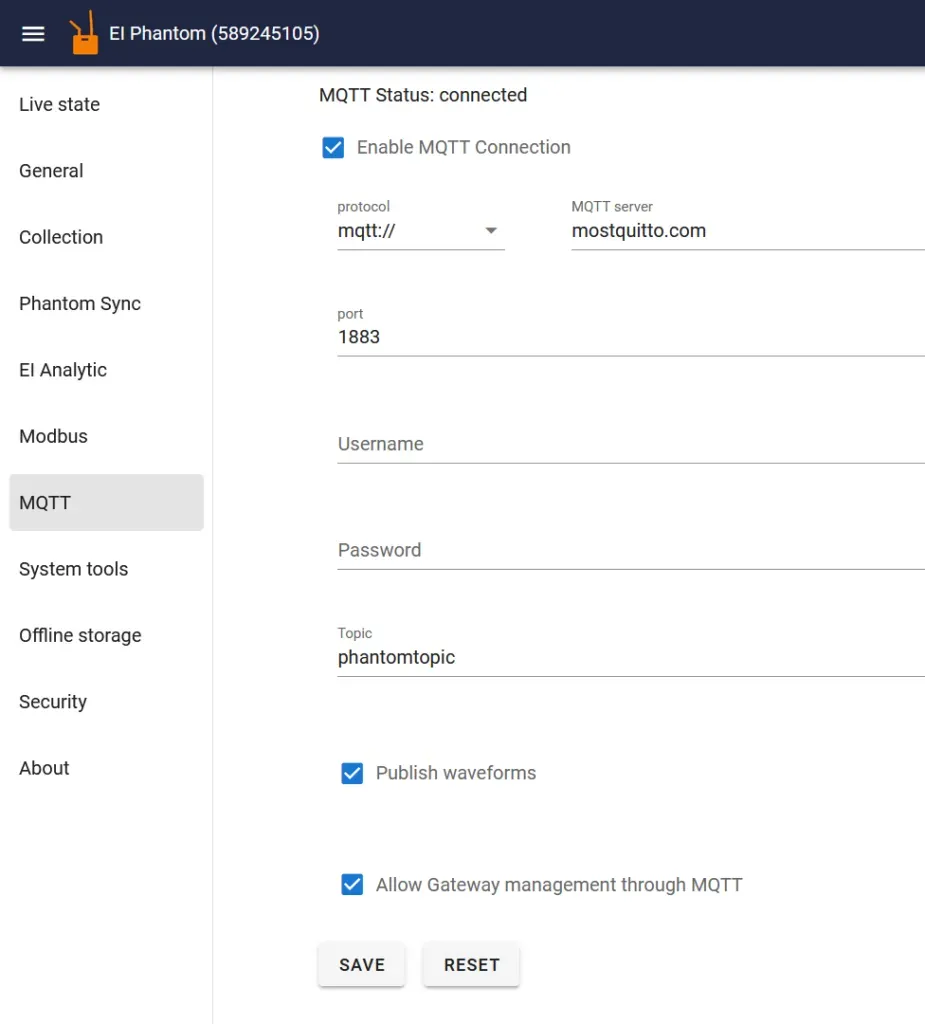

To enable the MQTT support in the Gateway 2.0 admin console; you need to activate it in the MQTT config page by clicking the “Enable MQTT connection” checkbox.

Then fill your MQTT broker options accordingly. We support the following protocols for connecting to the MQTT broker:

  • mqtt://
  • mqtts:// (encrpyted)
  • ws:// (websocket)
  • wss:// (websocket encrypted)

You need to enter your MQTT broker hostname/ip address, the port, and optionally the user name and password for authentication.

If you wish to receive full time wave forms from vibration sensors please mark the corresponding checkbox. Time wave forms are large messages, so if you are not intending to use them you may leave the option unchecked.

The “Allow Gateway management though MQTT” option allows to use the full management API to control the gateway and its sensors using the MQTT connection. Please contact a Erbessd Instruments support representative to receive a copy of the Management API documentation.

After you save the settings the Gateway 2.0 will restart. After it restarts it will try to connect to the MQTT broker and show an state on the same MQTT section at the top if there’s any issues.

You can use the MQTT support at the same time of all other protocols supported by the Gateway. Including EI Analytic, EI Monitor, OPC UA and Modbus.

The Gateway will start publishing messages every time a sensor updates it’s data (in it’s own internal update interval) or when a time waveform measurement is taken. The messages are in JSON format and contain the following standard fields:

Common variables for all sensors

Variable Name Description
dataType
can be either “collection” or “stateupdate”. “collection” refers for time waveforms for vibration sensor. Every other sensor dataType is “stateupdate”, vibration sensors report “stateupdate” for it’s internal rms meassurement.
type
Sensor type (see table on the right).
phantomCode
Sensor’s serial number.
gwSerial
Gateway’s serial number.
timestamp
The time in seconds since 1970 where this meassurement was taken.
battery
Battery voltage in volts
batteryType
Battery type. 1/6D (1), AAA(2), CR2032(3), CR2477(4).
temperature
Sensor’s internal temperature (in Celsius).
version
Firmware version
rssi
Sensor’s signal strength
Sensor code Sensor type
3, 5 and 6
Triaxial accelerometer.
10
Thermal camera.
21
Thermocouple temperature
25
Infrared temperature
26
4-20mA sensor’s node
31
Dry contact.
32
Current module (4 channel).
50
Low noise biaxial accelerometer.
60
General purpose module
40
Velocity (RPM module).

The following are the properties included for each sensor type:

Triaxial Accelerometer (3, 5 and 6)
Variable Name Description
RMS
Three float array with the Velocity RMS in mm/s corresponding to each axis.
Triaxial Accelerometer (3, 5 and 6) for dataType "collection"
Variable Name Description
sampleRate
The sample rate at which this meassurement was taken.
data
This will contain the time wave form data. It contains three arrays, one for each axis. Two of the axis arrays may be empty if a single axis mode was selected. The numbers in the array are in G’s (9.8mm/s²)
Thermocouple temperature node message (20)
Variable Name Description
tcTemperature
Three float array with the temperature of each thermocouple channels in celsius.
Infrared temperature node message (25)
Variable Name Description
ambientTemperature
Ambient temperature as meassured by the infrarred sensor in celsius.
objectTemperature
Three float array with the temperature of each thermocouple channels in celsius.
4-20mA sensor (26)
Variable Name Description
voltage
A float array of size 4 with the voltage 4-20mA sensor.
Velocity (RPM) sensor (40)
Variable Name Description
rpm
Float value with the current RPM speed.
Current sensor (32)
Variable Name Description
instCurrent
A float array size 4 with the Instantaneous current for each of the four channels of the sensor in amps.
averageCurrent
A float array size 4 with the Average current for each of the four channels of the sensor in amps.
minCurrent
A float array size 4 with the minimum current for each of the four channels of the sensor in amps.
maxCurrent
A float array size 4 with the maximum current for each of the four channels of the sensor in amps.
accumulatedCurrent
A float array size 4 with the accumulated current for each of the four channels of the sensor in amps.
Dry contacts Sensor (31)
Variable Name Description
dryContactsState
A boolean array size 4 with the state of the input. True means the contact is closed and false means open.
