Technical Specs
|
Max Load |
66 lb (30 kg) Pair /
33 lb (15 kg) Each |
|
Dimensions (L x W x H) |
5 x 1.125 x 5.875 in
(127 x 28.58 x 150 mm) |
|
Weight |
2 lb (0.9 kg) / Unit |
|
Max Axial Load |
0.50 lbf (2.21 N) |
|
Min Bearings Surface contact
|
0.313 in (8 mm)
|
|
Max Shaft Diameter in supports
|
2.5 in (63.5 mm) |
|
Lock System |
No |
|
Elevation Screw |
No |
|
Optional |
Accesories & Spare Parts
EI-30 Balancing Machine has a wide range of optional accessories and spares to increase performace and realiability.

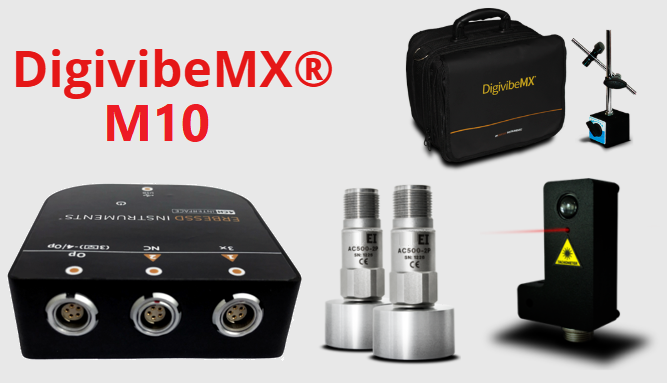

DigivibeMX Kit
DigivibeMX is the family of devices that allows you to perform vibration analisis and dynamic balancing (depending of the DigivibeMX version) with more functions in the market. From simple Vibration analysis to complex 3D ODS vibration simulations. Read more about DigivibeMX family.
Negative Load Support
It’s an accessory for SBS required when balancing rotors are mounted on cantilever and/or to secure rotors with high levels of vibration, like crankshafts. Each support includes bearings and has adjustable height. Its dimensions may vary depending on the bearing suspensions.
Accelerometer
Including magnetic base.
Cantilever Roller Support
